| VMZ | TECHNICAL DATA |
| Parameter |
Value |
| Type |

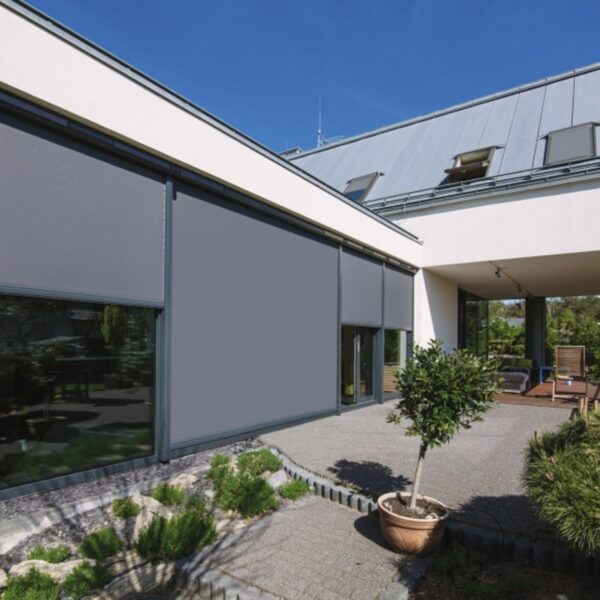

Awning blind with side guide rails |
| Application |
Vertical windows and doors made of PVC, aluminium or wood (balcony, terrace); external installation |
| Control |
Manual, by hand or via control rod (purchased separately) |
| Dimensions (width A x height B) |
A 400-499 x B 400-1800 mm; A 500-599 x B 400-2100 mm; A 600-1249 x B 400-2510 mm; A 1250-2000 x B 400-2100 mm (made to measure) |
| Fabric relative open area |
10%, 1%, 4%, 0% (0% not for manual VMZ) |
| Standard aluminium profile colours |
RAL 7022, RAL 8003, RAL 9005, RAL 9010; any RAL colour on request |
| Cassette |
Type A (oval), Type B (rectangular), Type C (round; Solar version then uses an external solar panel with 3 m cable); height 85 mm or 100 mm; single or combined guide rails |
| Colours |
Fabric 089 (10% relative open area), Fabric 090 (10% relative open area), Fabric 091 (10% relative open area), Fabric 092 (1% relative open area), Fabric 093 (1% relative open area), Fabric 701 (4% relative open area), Fabric 702 (4% relative open area), Fabric 703 (4% relative open area), Fabric 704 (4% relative open area), Fabric 705 (4% relative open area), Fabric 706 (4% relative open area), Fabric 707 (4% relative open area), Fabric 708 (4% relative open area), Fabric 709 (4% relative open area), Fabric 710 (4% relative open area), Fabric 711 (4% relative open area), Fabric 712 (4% relative open area), Fabric 713 (4% relative open area), Fabric 714 (4% relative open area), Fabric 715 (4% relative open area), Aluminium profile RAL 7022, grey (standard), Aluminium profile RAL 8003, brown (standard), Aluminium profile RAL 9005, black (standard), Aluminium profile RAL 9010, white (standard) |
