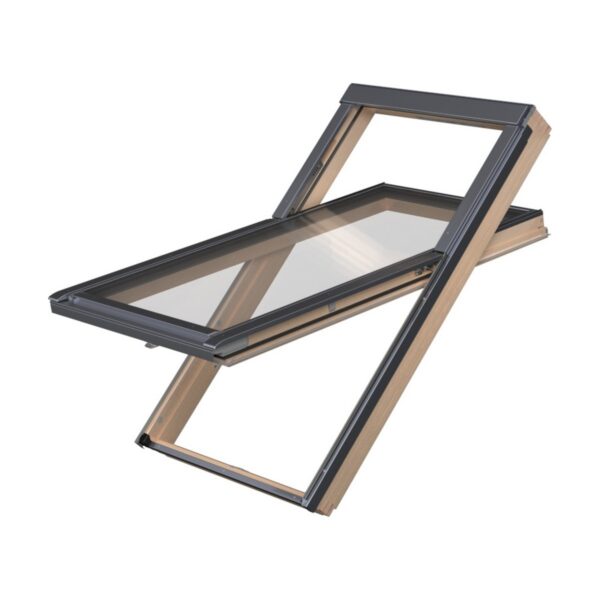

FYP-V U41 APMX

Name: Ymalko Crna Gora
Address: Grbe bb, Danilovgrad, 81410, ME
Telephone: +38269309007

FYP-V U41 APMX is a pivot roof window with a raised axis of rotation from the GREENVIEW range.
• Top quality pinewood, vacuum impregnated
• Window U-value Uw=1.1 W/m²K
• Acoustic insulation Rw=36 dB
• Quadruple sealing system
• With air inlet (without air inlet upon request)
• Patented topSafe system supporting burglary resistance

Specifics

Specifics

FYP-V U41 APMX \| TECHNICAL DATA
Parameter	Value
Window U-value	1.1 W/m²K
Glazing U-value	0.60 W/m²K
Acoustic insulation Rw	36 dB
Glazing unit	Triple-glazed
External glass toughened	+
External glass with easy maintenance layer	–
Internal glass laminated (safe)	–
Air inlet type	With air inlet. With no air inlet upon request.
Varnishing	twice varnishing
Multi-point opening	+
Installation range	20-65°
Material	Pinewood, vacuum impregnated; two coats of water-based varnish
Code	FYP-V U41 APMX
Colours	Anthracite RAL 7016 (standard), Grey-brown RAL 7022, Black RAL 9005
