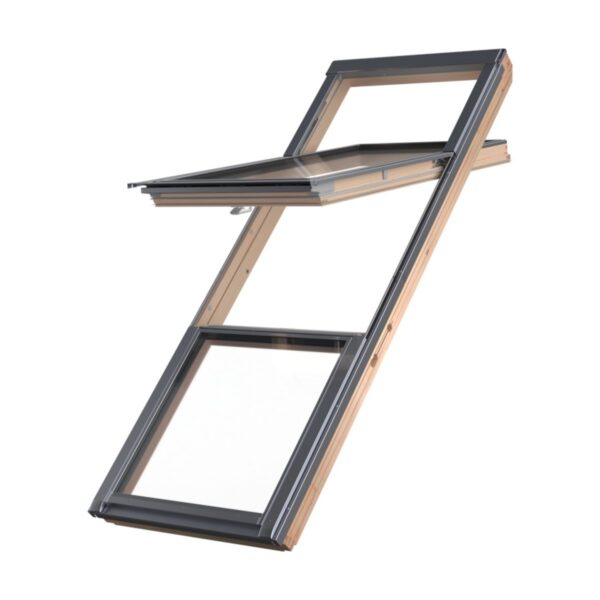

FDP-X P50 APMX

FDP-X P50 APMX is a double sash roof window (Duet proSky) with a lower transom from the GREENVIEW range.
• Top quality pinewood, vacuum impregnated
• Window U-value Uw=1.1 W/m²K (1.0 W/m²K me kornizë Thermo)
• Acoustic insulation Rw=40 dB
• Quadruple sealing system
• Laminated (safe) internal glass and toughened external glass
• Patented topSafe system supporting burglary resistance

Dimensions:

78×186, 78×206, 78×235, 78×255, 94×186, 94×206, 94×235, 94×255, 114×235, 114×255 [cm]

Specifics

Specifics

FDP-X P50 APMX \| TECHNICAL DATA
Parameter	Value
Window U-value	1.1 W/m²K (1.0 W/m²K with Thermo flashing)
Glazing U-value	0.55 W/m²K
Acoustic insulation Rw	40 dB
Glazing unit	Triple-glazed
External glass toughened	+
External glass with easy maintenance layer	+
Internal glass laminated (safe)	+
Air inlet type	No air inlet. With air inlet upon request.
Varnishing	twice varnishing
Multi-point opening	+
Installation range	25-65°
Material	Pinewood, vacuum impregnated; two coats of water-based varnish
Code	FDP-X P50 APMX
Colours	Anthracite RAL 7016 (standard), Grey-brown RAL 7022, Black RAL 9005
