DRC P2

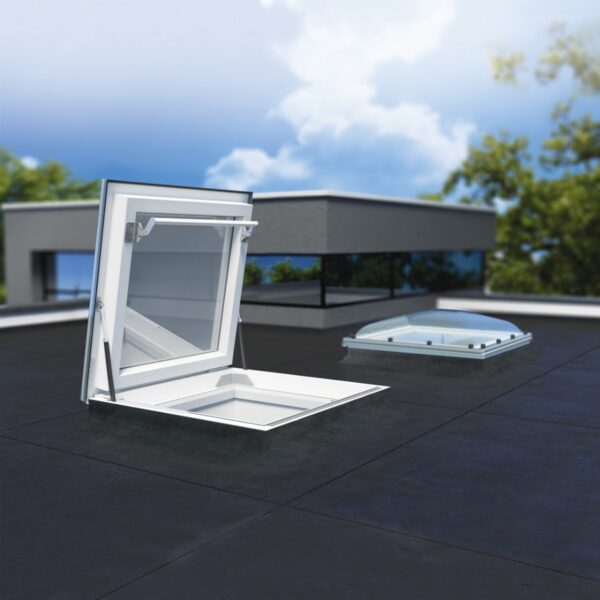

The DRC P2 flat access roof light with polycarbonate dome for safe access to the flat roof.
• Transparent (DRC-C) or opaque (DRC-M) dome with P2 glazing unit and U=0.93 W/m²K
• Sash opens up to 80° (up to 60° in sizes 90x120 and 120x120), supported by gas springs
• Anti-slip tape on the frame profiles for safe access
• For roof pitches from 0° to 15°
• Can be mounted on 15 cm XRD/W bases (up to three) for green or gravel roofs
• Allows internal manual accessories and external solar accessories

Dimensions:

90×90, 90×120, 100×100, 120×120 [cm]

Specifics

Specifics

DRC P2 \| TECHNICAL DATA
Parameter	Value
Window U-value (U)	0.93 W/m²K (EN 1873:2005)
Urc thermal transmittance	0.76 W/m²K (EN 1873:2014+A1:2016, A:4.1 m²)
Glazing U-value	1.1 W/m²K
Glazing unit	4H-14-33.2T
Inert gas	argon
External glass	toughened
Internal glass	laminated (safe), P2A
Window class	LUX
Seals	two seals
Dome	Transparent (DRC-C) or opaque (DRC-M) polycarbonate dome
Maximum opening angle	80° (60° in sizes 90x120 and 120x120)
Roof pitch	0° to 15°
Frame	Multi-chamber PVC profiles filled with insulation material
Lock	ZBR lock optional (against accidental closure of the sash)
Installation base	XRD/W base (height 15 cm), up to three bases
